ARABLE ROLLERS – CAMBRIDGE AND PRISMS

ARABLE ROLLERS – CAMBRIDGE AND PRISMS

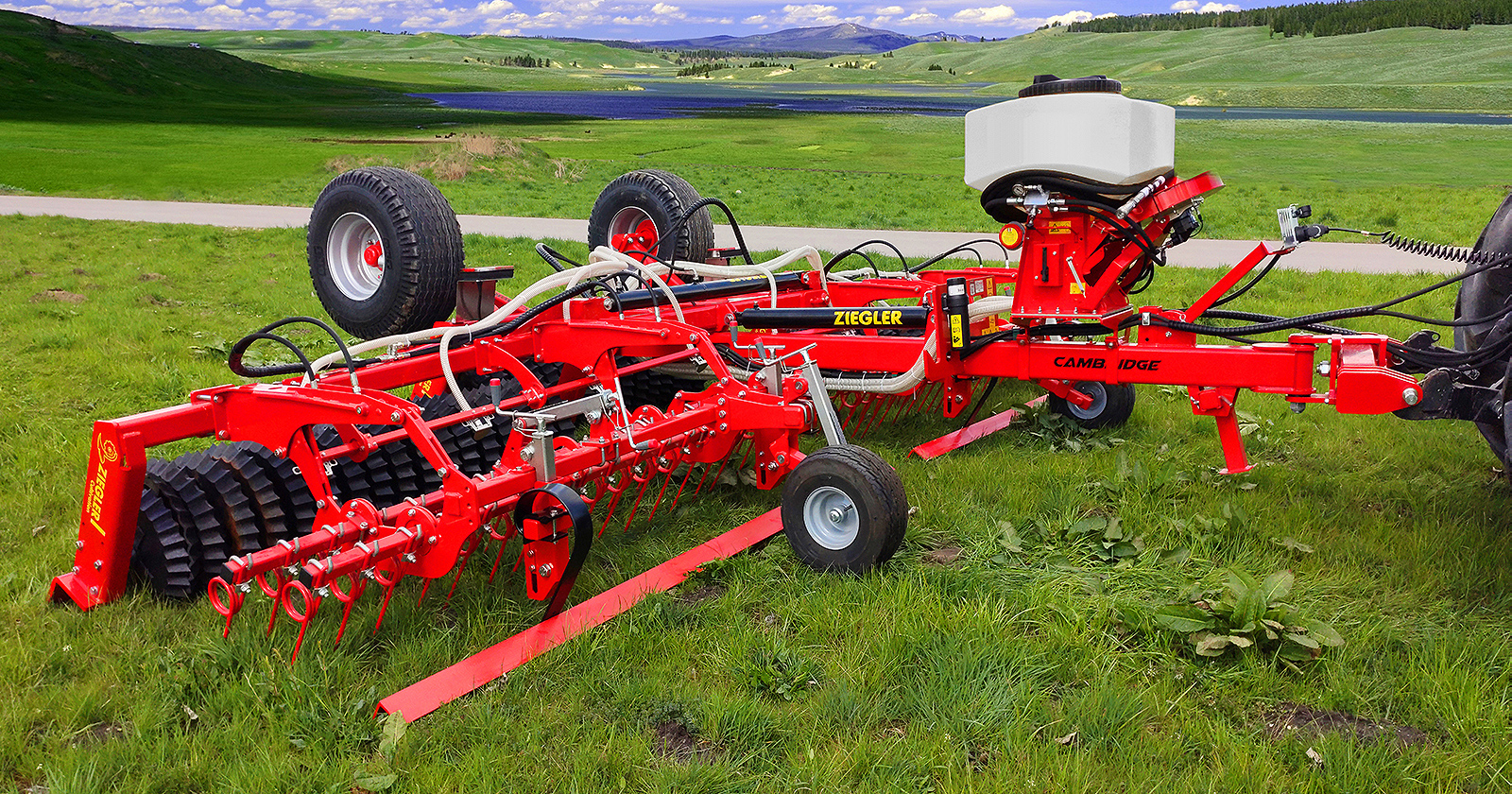

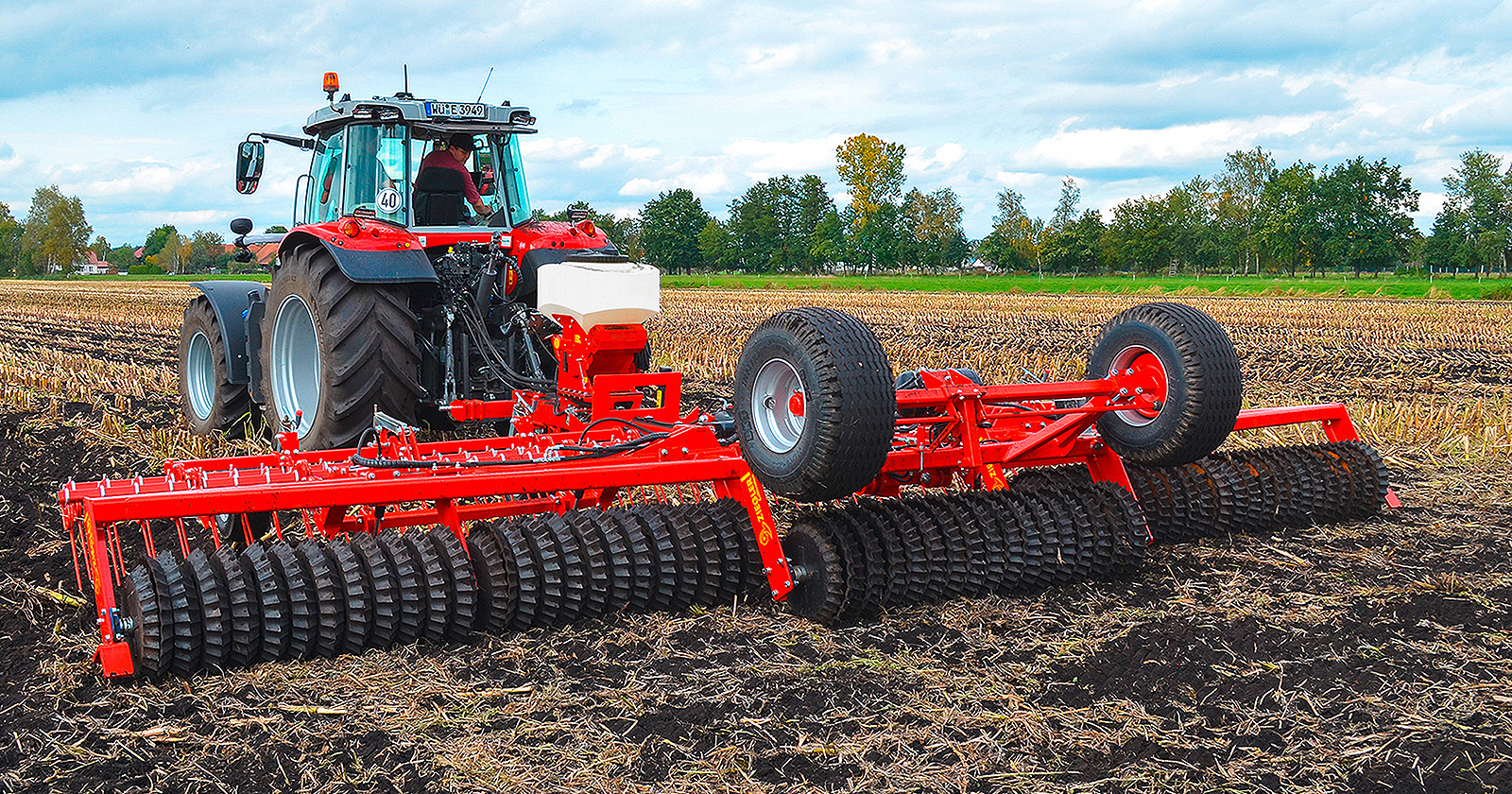

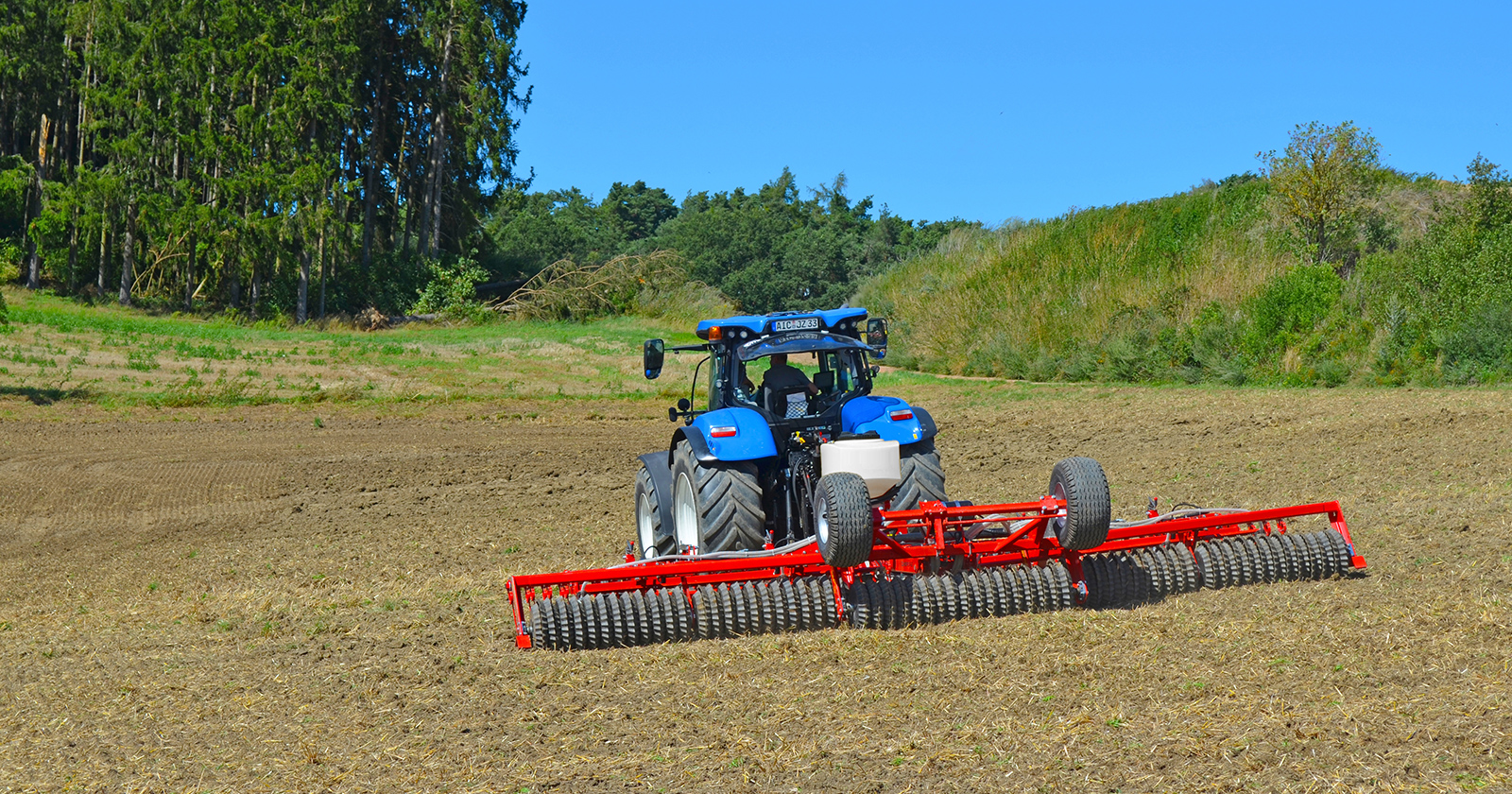

The hydraulically folding field roller from ZIEGLER finds many applications. It can be used to improve soil structure and reduce soil erosion. Perfect for reconsolidating loose arable soils, as well as for breaking up large clods of soil. Seed emergence and soil moisture content are visibly improved, and slug infestations can even be reduced.

Further, it is perfect for restoring soil closure in the spring after soil freezing or for leveling reseeding in grassland. The optional harrow is hydraulically adjustable. Even more aggressiveness can be adjusted on harrow by means of its own hand crank. The harrow tines are secured against loss with a wire rope.

Particularly convincing is the robust construction of our field rollers in combination with durability and ease of maintenance: all moving parts are equipped with bushings for easy maintenance even after several years.

The optionally available Crossboard is perfect for use in the field, it is extremely sturdily built and has wide paddles: the corn stubble is bent, the stalks are broken up, corn borers are thus effectively controlled. The Crossboard also does a great job of effectively leveling the field on coarse dirt, and the spring-loaded paddles effectively break up clods.

All rollers can be equipped with pneumatic intercrop seeders. This turns your roller into a seeder – for reseeding and catch crops.

HIGHLIGHTS

  • 3 different ring types are available (Cambridge, Cambridge 600 mm, Prisms)
  • Rollers operate independently of each other
  • Optimum ground contact due to 3 flexible roller units
  • Optimum weight distribution and maneuverability thanks to lower link hitching
  • 90 degree steering angle possible
  • Can be used for all tractor sizes thanks to the lower link hitch (no conversion necessary)
  • Standard tires 260/75-15.3
  • Extremely robust and durable as all joints are designed with wear bushings and multiple reinforcements

OPTIONS

  • 2-row harrow, optimal for spring as well as after stubble fall
  • Mole blank in combination with the double row harrow
  • The first choice for grassland applications
  • Crossboard
  • Air brake for safe transport (e.g. in difficult terrain/slopes)
  • Hydraulically foldable by means of 2 cylinders and flow divider
  • A clean folding even with enormous steepness on the slope
  • Pneumatic intercrop seeder

Technical data

wdt_ID TYP / TYPE ARBEITSBREITE / WORKING WIDTH OPTIONEN / OPTIONS KRAFTBEDARF / REQ. POWWER GEWICHT / WEIGHT
1 CAMBRIDGE 6001 6,05 m Cambridge- oder Prismenringe / Cambridge or prism rings ≈ 55 PS/HP ≈ 3.100 kg
2 CAMBRIDGE 7501 7,73 m Cambridge- oder Prismenringe / Cambridge or prism rings ≈ 70 PS/HP ≈ 3.900 kg

ACKERWALZES – CAMBRIDGE AND PRISMS Brochure – GERMAN / ENGLISH

Download
