CORN CHAMPION EVO2

CORN CHAMPION EVO2

ZIEGLER HARVESTING has three model versions of the maize picker in its range: the rigid CORN CHAMPION GEN III models and the new CORN MASTER. The folding mechanism of the CORN CHAMPION EVOLUTION2 (EVO2) is more solidly manufactured than its predecessor models and can therefore withstand all loads for years to come. The newly designed baffle plate in front of the intake minimizes corn cob throwing and at the same time increases throughput. The rigid maize pickers (CORN CHAMPION GEN III & CORN MASTER) from ZIEGLER are robust and reliable machines that offer many features and impress with their price-performance ratio. With all three models, harvesting speeds of up to 12 km/h are no problem. The CORN MASTER is equipped with plastic hoods and plastic cladding, which saves weight and fuel.

HIGHLIGHTS

  • The flat machine angle minimizes piston losses immensely
  • Long, but not too fast rotating infeed rollers guarantee gentle cob picking
  • Coated feed roller blades with additional picking bars
  • The centrally positioned horizontal chopper with freewheeling gearbox ensures an optimum chopping pattern
  • Maintenance-free gearbox main drive (Professional-Drive)
  • Hydraulic picking plate adjustment with position indicator (clearly visible from the cab)
  • Stubble bend as standard
  • No additional operator terminal required
  • Picking speed up to 12 km/h possible
  • Hydraulically driven storage corn augers (option)
  • Autocontour (option)
  • Autosteering (option)

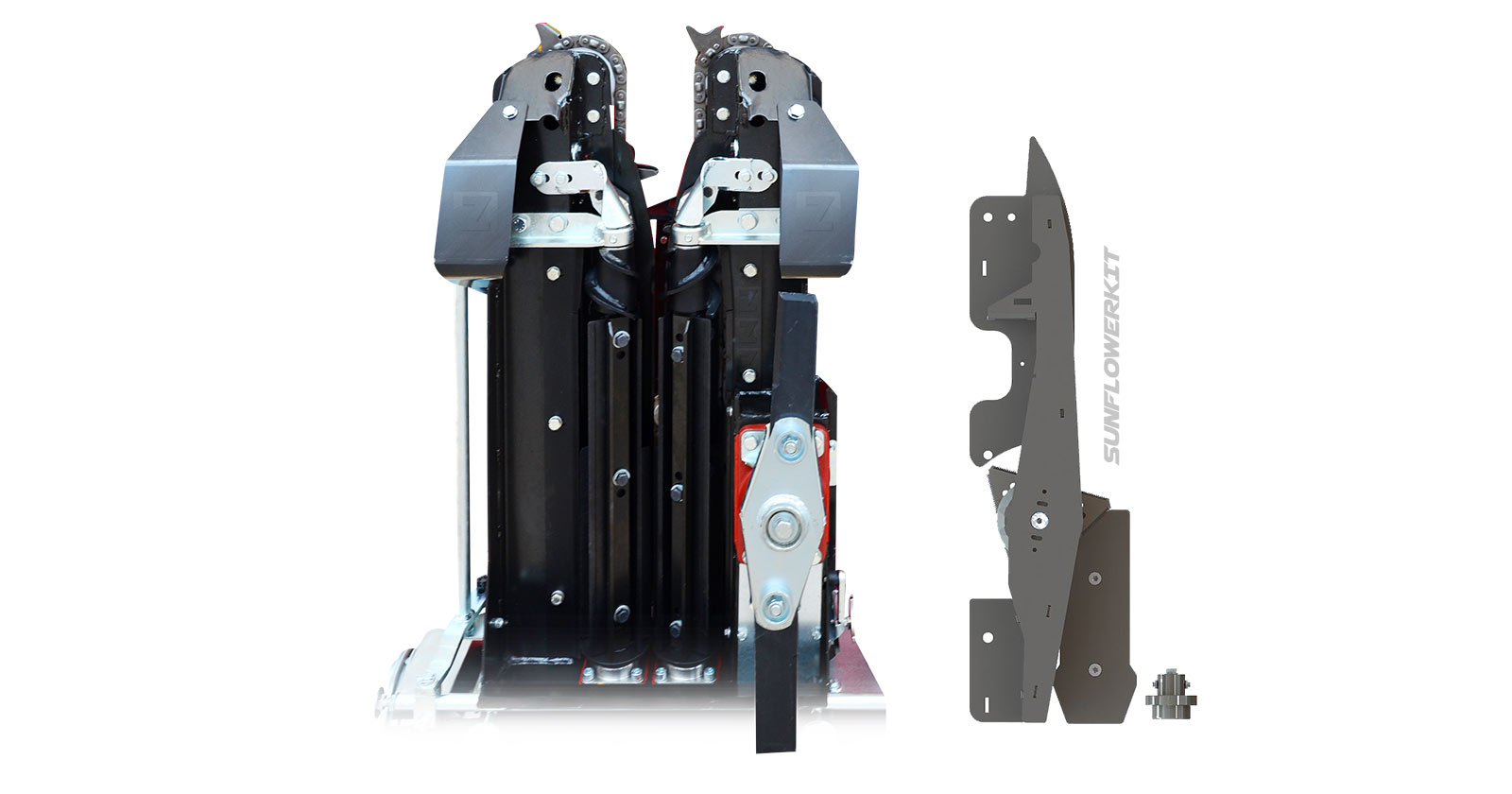

  • Sunflower kit (option)
  • Basic machine painted in desired color (option)
  • Pickers available with 50, 70 and 75 cm row spacing
  • Steel or plastic hoods/tips (depending on model)
  • Available for all common combine and forage harvester models
  • The interchangeable frame system enables easy combine replacement
  • ZIEGLER cutter carriage available for all CORN CHAMPION models (option)

Technical data

wdt_ID TYP / TYPE REIHEN / ROWS REIHENABSTAND / ROW DITANCE VERSION / VERSION
7 EVOLUTION 2 5 70 cm starr / fixed
8 EVOLUTION 2 5 75 cm starr / fixed
9 EVOLUTION 2 6 70 cm starr / fixed
10 EVOLUTION 2 6 75 cm starr / fixed
11 EVOLUTION 2 8 70 cm starr / fixed
12 EVOLUTION 2 8 75 cm starr / fixed
13 EVOLUTION 2 12 70 cm starr / fixed
14 EVOLUTION 2 12 75 cm starr / fixed
15 EVOLUTION 2 8 50 cm starr / fixed
16 EVOLUTION 2 10 50 cm starr / fixed
17 EVOLUTION 2 12 50 cm starr / fixed
